0132 Adjustable Knife Gate Regulator UFT-FluidMoon
Intended Purpose

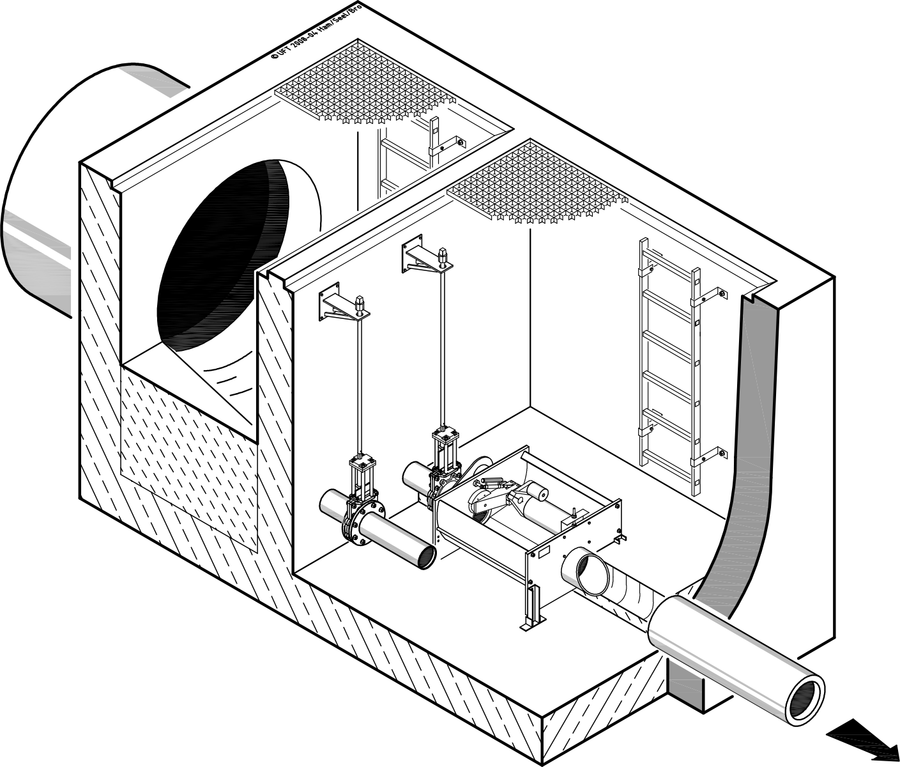

The Adjustable Knife Gate Regulator UFT-FluidMoon is a universally applicable closed loop flow regulator in semi-dry installation. It was especially developed for use in CSO tanks as well as in clarification tanks and retention tanks of the separate systems, i.e. wherever it is necessary to control low discharges in the range of 5 to 25 l/s reliably and insensitive to blockages.
The Adjustable Knife Gate Regulator works without external energy and does not require a bottom drop. Provided there is sufficient gradient, the inlet and outlet pipe inverts can be at nearly the same level.
Properties of the Adjustable Knife Gate Regulator UFT-FluidMoon
- hydraulic-mechanical closed loop control
- only one single moving part
- steep discharge curve with constant flow
- dry weather flow without backwater
- suitable for small discharges
- no auxiliary energy, no electrical connection required
- optional: automatic blockage release
- minimal consumption of height of only 1 cm
- no specific mounting opening required
- manually adjustable flow, even under full load
- corrosion-resistant materials
- easy to understand function
- simple maintenance
- durable design
